MEDIN-SAFIS X-ray surgical table

Product catalogue Medin (17.38 Mb)

Description Technical parameters Documents to download Related products

X-ray surgical table MEDIN-SAFIS is best solution for wide range of X-ray surgery diagnostic and treatment procedures with the use of C-arm unit and as a part of an angiographic complex. Table top is made of carbon fibre providing high durability, low X-ray absorption and radiation exposure. The table top is equipped with a removable antidecubitus padding with antistatic coating for maximum patient comfort.

Height, longitudinal tilt, lateral tilt adjustments as well as longitudinal, lateral and diagonal shifts done with the help of electric drives impelled by remote control
Automatic locking of movements to prevent damage to the table
Emergency stop function
Long-lasting self-powered operation carried out by increased battery capacity

Features:

Table top “zero positioning” function performed by any remote controls
Table can be integrated into an angiographic complex
Battery charging indicator
Charging ability at any time (no "memory" effect of the battery)
Double swivel castors for high maneuverability
Push bar for transporting
Castor brake pedal
Floor fixing pedal
10x25 mm stainless steel side rails for accessory mounting

Adjustments:

Lifting/lowering of the table top - electromechanical
Longitudinal tilts - electromechanical
Lateral tilt - electromechanical
Longitudinal shift – electromechanical (excepting MEDIN-SAFIS-02)
Lateral shift – electromechanical (excepting MEDIN-SAFIS-02)
Horizontal position of table top in two planes – electromechanical
Brakes control by foot pedal

Used with the following KPP sets:

15 16

18

26

30 31 32

37 38 39 40

41
43

Additional accessories:

Stainless steel instrument table
Cross bar for accessories mounting
Table side bar extension
Arms protection
Cross bar with headrest

Warranty 24 months

Attention!
The information presented on the website has an advertising nature. For up-to-date information on product design and its technical characteristics, please contact our sales department!

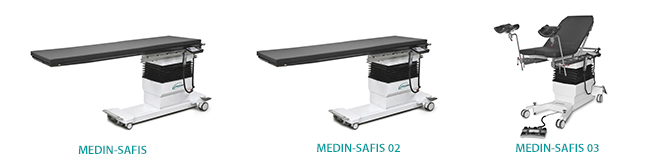

TECHNICAL DATA	MEDIN-SAFIS	MEDIN-SAFIS 02	MEDIN-SAFIS 03
Height adjustment	electric drive	electric drive	electric drive
Longitudinal tilt	electric drive	electric drive	electric drive
Lateral tilt	electric drive	electric drive	electric drive
Lateral shift	electric drive	no	electric drive
Longitudinal shift	electric drive	no	electric drive
Dorsal section adjustment	no	no	manual
Max table top height (without mattress), mm	1090	1090	1090
Min table top height (without mattress), mm	790	790	790
Longitudinal tilt (Trendelenburg position), degree	23	23	23
Longitudinal tilt (Anti-Trendelenburg position), degree	23	23	23
Lateral tilt (right), degree	18	18	18
Lateral tilt (left), degree	18	18	18
Dorsal section tilt, degree	no	no	75
Longitudinal shift, mm, not less than	490	no	490
Lateral shift, mm, not less than	200	no	200
Safe working load, kg	220	220	220
Table top material	carbon fiber	carbon fiber	structural plastic
Table top length, mm	2100	2100	1370
Table top length incl. leg section, mm	-	-	2100
Table top width, mm	580	580	540
Table top width (incl. side rails), mm	630	630	590
Table top absorption coefficient (AI), mm	less than 0,8	less than 0,8	less than 1,5
X-ray zone of the unlimited visibility (360 degree), mm	1150	1450	400
X-ray zone with a limited visible angle (90 degree), mm	1500	1600	500
Main remote control	yes	yes	yes
Additional remote control	yes	yes	yes
Additional foot-operated pedal	accessory	accessory	yes
Additional X-Y motion control	joystick	no	joystick
Power supply	yes	yes	yes
Battery	yes	yes	yes
Supply voltage for drives	36 V DC	36 V DC3	36V DC
Maximum table load	270 kg	270 kg	270 kg
