ОМ-SIGMA

ОМ-SIGMA - transporter for table tops carriage with height adjustment and dorsal section bending.

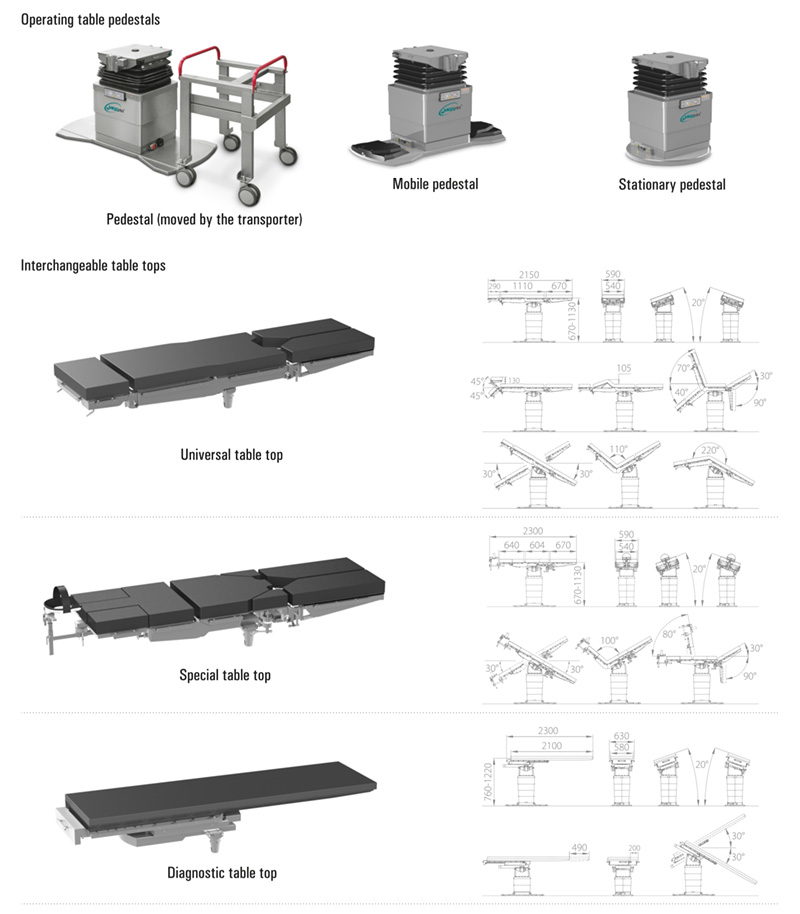

Operating table OM-SIGMA, which is a system of interchangeable tabletops and transporters, ensures sterility in the operating theatres, saves time while preparing the patient for the surgery and significantly increases throughput. This model allows you to transport the patient within the operating theatre, excluding the stage of transferring him to a hospital gurney. It reduces the risk of injury to the patient after complex operations.

The table is convenient for the surgical team: tabletops can be moved by the transporters both from the side of the head and leg sections. Table adjustments are carried out by a wireless remote control as well as a backup control on the table column. The transporters move easily thanks to the large double castors Ø150 mm with a direction lock.

Operating table OM-SIGMA is compatible with all sets of additional accessories produced by the company.

Used with the following KPP sets:

Features:

• Multifunctional operating table and patient transporting system
• Removable table tops with remote control, dorsal section, longitudinal shift and tilt
• Extanded table top width
• Viscoelastic mattress with memory effect
• The flat base increases the space for the X-ray apparatus with a C - arm when the table is in lower position
• М1, М2 positions are programmed by the user. (M1 button is programmed for “Flex” function, M2 - “Reflex” function in the manufacture settings)
• Ability to interact with the integrated OS via Bluetooth, RS485, etc.
• Cordless remote control (basic option)
• Table top “zero positioning” function
• Head and legs sections quick fixation
• Column has no backup drive

Warranty 24 months!

Attention!

The information presented on the website has an advertising nature. For up-to-date information on product design and its technical characteristics, please contact our sales department!

• Technical parametersОМ-SIGMA-06, ОМ-SIGMA-09, ОМ-SIGMA-12.
• Table top length, not less than 2150 мм
• Table top length (without head and leg sections), not less than 1100 мм
• Table top width over the guides, not less than590 мм
• Table top width, not less than 540 мм
• Min. table top height (pads thickness is not included), not more than670 мм
• Max. table top height (pads thickness is not included), not less than1130 мм
• Table top longitudinal tilt, not less than - 30º/+ 30º
• Table top lateral tilt , not less than + 20º/- 20°
• Dorsal section tilt (up/down), not less than + 70º/- 45°
• Head section tilt (up/down), not less than+ 45º/- 45°
• Leg section tilt (up/down), not less than+ 30º/- 90°
• Table top tilts provided FLEX positioning 220°
• Table top tilts provided REFLEX positioning 110°
• Pads movement (dorsal section bending), not less than105 мм
• Table top longitudinal motion 320 мм

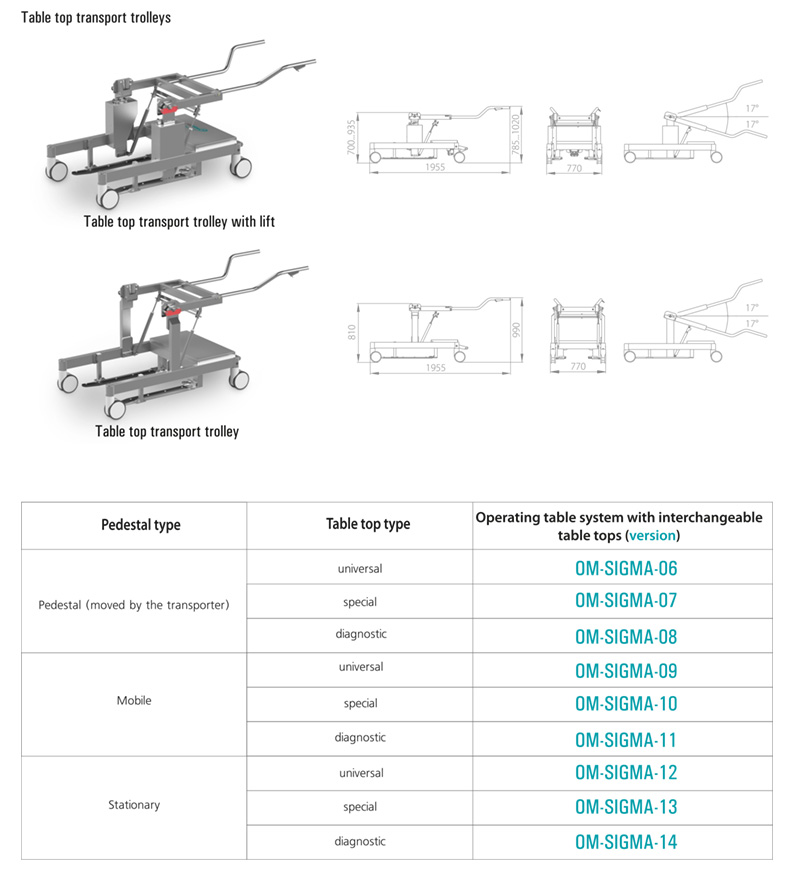

• Min. height of table top, placed on the moving trolley (pads thickness is not included), not more than 820 мм
• Max. height of the table top, placed on the transporting trolley (pads thickness is not included), not less than 1050 мм
• Longitudinal tilt of the table top, placed on the transporting trolley + 17º/- 17°
• Transporting trolley length (without the table top on it), not more than1955 мм
• Transporting trolley width, not more than770 мм
• Transporting trolley height (adjustable) 760…995 мм
• Table safe working load, not less than 250 kg
• Table safe working load (with functions limitation) 350 kg
• Power network settings ~ 230 В, 50 Gz
