OK-GAMMA

OK-GAMMA is operating table for general surgery with mechanohydraulic drives. It's the best solution for ordinary surgical manipulations.

Features:

• Protective column covering, all open metal surfaces and additional accessories are made of stainless steel
• Table base protected by an extra proof composite base cover
• Table base has 2 adjustable supports and 2 castors Ø50 mm
• Using seamless technology, molded removable mattresses made from integral polyurethane foam with an antistatic effect, and an innovative antimicrobial treatment (Ultra Fresh)
• 5 sections table top (incl. split leg section)
• Dorsal section bending (for OK-GAMMA 01) - 105 mm
• X-ray translucent table top
• C-arm compatible
• Input of the X-ray film cassette from head sections
• Head and split leg sections adjusted by clamps
• Can be used with wide range of additional accessories

Adjustments:

• Lifting/lowering of the table top – foot-operated hydraulic jack
• Longitudinal tilts - mechanical
• Lateral tilts (OK-GAMMA 01, 03) - mechanical
• Dorsal section adjustment - gas spring
• Dorsal section bending (OK-GAMMA 01) - mechanical
• Leg and head section tilts - locking clamps

• OK-GAMMA 03 – with lateral tilts

• OK-GAMMA 02 – basic functions

• OK-GAMMA 01 – with lateral tilts and dorsal section bending

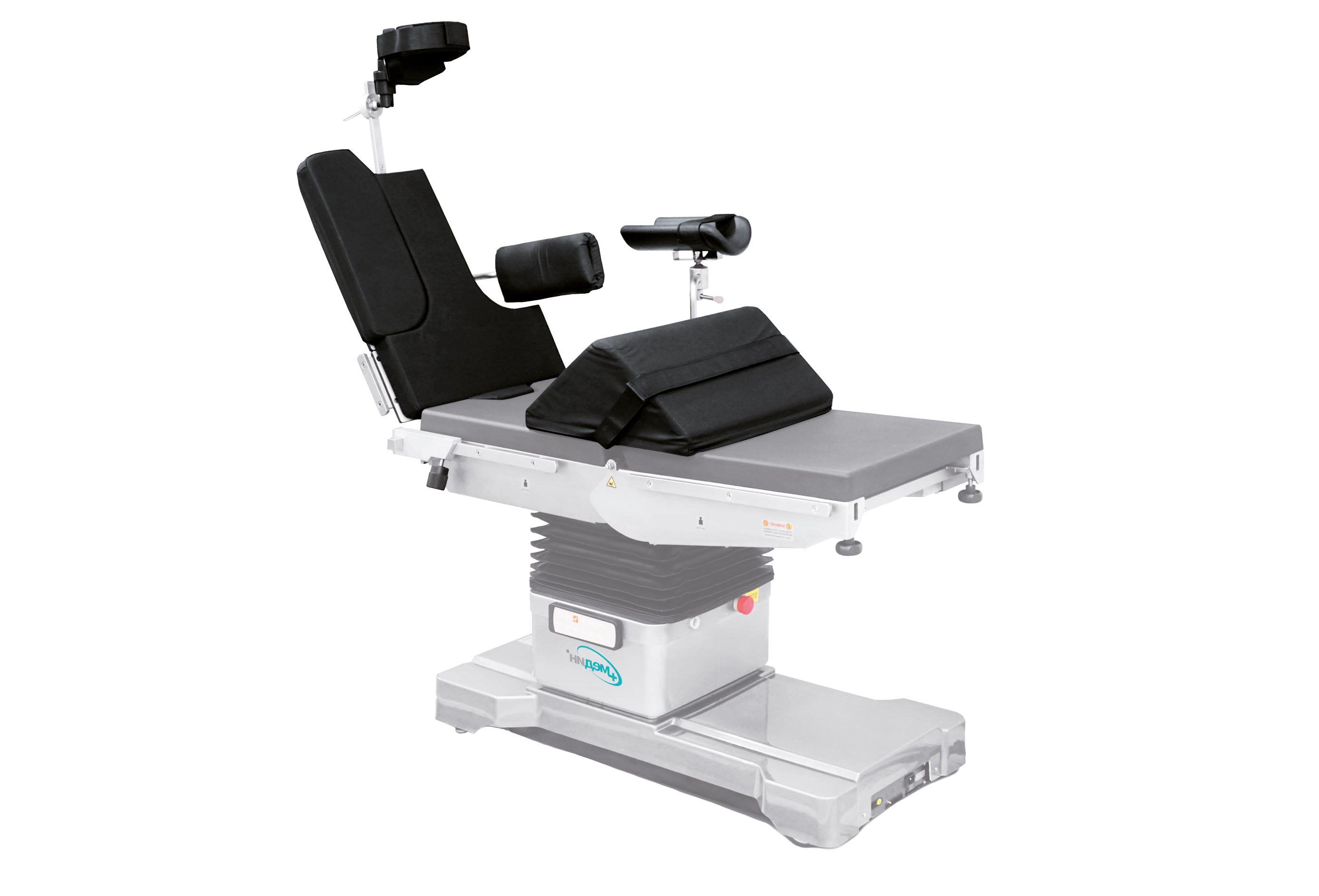

Used with the following KPP sets:

• Table top length, not less than 1900 mm
• Table top length (without head and leg sections), not less than 950 mm
• Table top width over the guides, not less than 550 mm
• Table top width, not less than 500 mm
• Min. table top height (pads thickness is not included), not more than 760 mm
• Max. table top height (pads thickness is not included), not less than 1050 mm
• Table top base length, not more than 915 mm
• Table base width (from the head section side), not more than 325 mm
• Table base width (from the leg section side), not more than 550 mm
• Table base height, not more than 75 mm
• Table base niche depth (from the leg section side), not less than 95 mm
• Longitudinal tilt (Trendelenburg/ Anti-Trendelenburg position), not less than- 30º/ + 30º
• Dorsal section tilt (up/down), not less than+ 75º/ - 45°
• Tilt of the head section (up/down), not less than+ 45º/ - 90°
• Leg section tilt (up/down), not less than + 30º/ - 90°
• Table top lateral tilt (for OK-GAMMA 01, 03), not less than + 20º/ - 20º
• Lifting height of the dorsal section bending (OK-GAMMA 01), not less than 105 mm
• Max. head section shift, not less than 100 mm
• Safe working load, not less than160 kg
• Safe working load (with adjusting limitation) 250 kg
• Table weight (without sets of accessories), not more than 150 kg
• Maximum table load300 kg
